Trolleys and SCREEN STANDS

Delivering Quality & Innovation Bespoke AV Furniture For Your Business

The Piqo range offers trolleys and stands built around a metal frame system.

The range offers many add on modules and accessories allowing you to fully customise the stand for your clients exact requirements.

The range has built in cable management allowing for neat clean installs.

If you have a specific metal work requirement please let us know as we are able to custom design and build.

Stands

Trolleys

PIQO SMALL SCREEN FLOOR TO WALL STAND

Product Code : QC3255FC

Stand for 32″ to 55″ screens & displays 1.8m max screen height (centre of screen mount)

Dimensions H-1827mm x W-720mm x D-175mm

35kg maximum weight limit. Satin grey over satin black powder coat.
Screen can be mounted landscape or portrait. Universal up to 400mm x 800mm portrait.
Universal up to 800mm x 400mm landscape. VESA 75/100/200/300/400/600×400/800×400.
Column plate for fixing back to the wall (can be set at a height to suit).

Base plate has fixing points into the floor with cover.

Screen can tilt 11 degree downwards, 5 degree upwards (screen size dependent). Screen adjustable to any height on the stand.

Single extruded aluminum upright for simple assembly & adjustment.

Cable management through base and up through upright. Polymer board inserts to conceal cables.

High grade steel and aluminum parts

PIQO LARGE SCREEN FLOOR TO WALL STAND

Product Code : QC5585FC

Stand for 50″ to 90″ screens & displays 1.8m max screen height (centre of screen mount)

Dimensions H-1827mm x W-842mm x D-300mm

100kg maximum weight limit. Satin grey over satin black powder coat. Screen can be
mounted landscape or portrait. Universal up to 600mm x 600mm portrait. Universal up to
800mm x 600mm landscape. VESA 200/300/400/600×400/600/800×400. 50″ – 90″ flat
screens in Landscape (800×600) – 55″ – 90″ flat screens in Portrait (600×800). Tilts downwards up to 16 degree (screen size dependent). Screen adjustable to any height on the stand.
Large back rail for increased fixing and stability. Base plate has fixing points into the floor
with cover. Twin extruded aluminum uprights for simple assembly & adjustment. Cable
management through base and up through uprights. Polymer board inserts to conceal cables.
Bracket arms are bolted to the frame for safety. Bracket arms can also be padlocked for
security

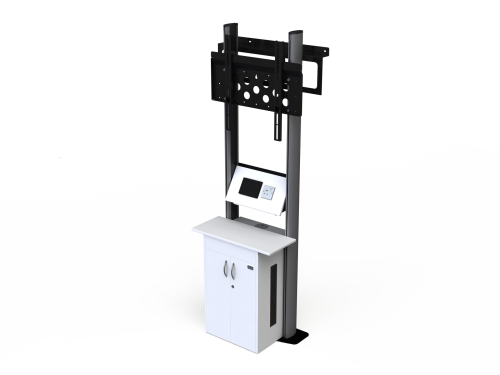

PIQO QC5585FC-A CABINET, CONTROL PANEL HOUSING AND MESH PANEL

Product Code : QC5585FC-A

Stand for 50″ to 90″ display with built in cabinet and CPH and Mesh panel

Dimensions H-2119mm x W-1414mm x D-480mm
Cabinet 400mm deep with 3 shelves

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with cabinet at base,
perforated steel mesh panel which covers the rear top of the screen and CPH with PC
attached. Cabinet to be 400mm deep with 3x adjustable shelves, lockable modesty panel and cable access behind shelves. CPH to include cut-outs with a usable width of 325mm.

Mesh panel adjustable
Av equipment not supplied

PIQO QC5585FC-B CABINET AND CONTROL PANEL HOUSING

Product Code : QC5585FC-B

Stand for 50″ to 90″ display with built in cabinet and CPH

Dimensions H-2119mm x W-832mm x D-480mm
Cabinet 400mm deep with 3 shelves

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with cabinet at base
and CPH with PC attached. Cabinet to be 400mm deep with 3x adjustable shelves, lockable
modesty panel and cable access behind shelves. CPH to include cut-outs with a usable width of 325mm.

Av equipment not supplied

PIQO QC5585FC-C SHELF, CONTROL PANEL HOUSING AND MESH PANEL

Product Code : QC5585FC-C

Stand for 50″ to 90″ display with shelf, CPH and Mesh panel

Dimensions H-2119mm x W-1414mm x D-390mm

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with shelf, perforated
steel mesh panel which covers the rear top of the screen and CPH.
CPH to include cut-outs with a usable width of 325mm.

Av equipment not supplied

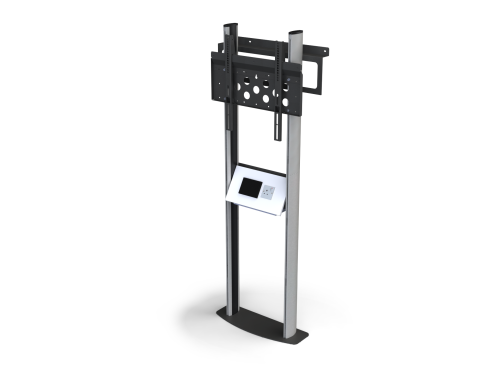

PIQO QC5585FC-D SHELF, CONTROL PANEL HOUSING

Product Code : QC5585FC-D

Stand for 50″ to 90″ display with shelf and CPH

Dimensions H-2119mm x W-832mm x D-390mm

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with shelf and CPH.
CPH to include cut-outs with a usable width of 325mm.

Av equipment not supplied

PIQO QC5585FC-E RACK CABINET, CONTROL PANEL HOUSING AND MESH PANEL

Product Code : QC5585FC-E

Stand for 50″ to 90″ display with space for 12u Rack in cabinet, CPH and Mesh panel

Dimensions H-1907mm x W-1414mm x D-460mm
Cabinet 400mm deep with 3 shelves

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with 12u cabinet at
base, perforated steel mesh panel which covers the rear top of the screen and CPH
CPH to include cut-outs with a usable width of 325mm.



Mesh panel adjustable
12u Open frame not included
Av equipment not supplied

PIQO QC5585FC-F RACK CABINET AND CONTROL PANEL HOUSING

Product Code : QC5585FC-F

Stand for 50″ to 90″ display with space for 12u Rack in cabinet, CPH
Dimensions H-1907mm x W-1414mm x D-460mm
Cabinet 400mm deep with 3 shelves

Utilising the Piqo 5585FC floor to wall. This was designed to allow the unit to be fitted to a
low internal wall in an open plan teaching area. Piqo floor to wall 2.1m with 12u cabinet at
base and CPH

CPH to include cut-outs with a usable width of 325mm.

Mesh 12u Open frame not included
Av equipment not supplied

Trolleys

PIQO SMALL SCREEN TROLLEY

Product Code : QC3255TR

Trolley for 32″ to 55″ screens & displays 1.6m max screen height (centre of screen mount)

Dimensions H-1650mm x W-761mm x D-591mm

35kg maximum weight limit .Satin grey over satin black powder coat. Screen can be mounted landscape or portrait. Universal up to 400mm x 800mm portrait. Universal up to 800mm x 400mm landscape. VESA 75/100/200/300/400/600×400/800×400.
Base design allows nesting of one or more trolleys to save space. Screen can tilt 11 degree
downwards, 5 degree upwards (screen size dependent). Screen is adjustable to any height on the trolley. Option tether points on rear of stand. Simple and quick assembly. High grade steel and aluminium parts. Depth & height allows passage through a standard single door. Single extruded aluminium upright for simple assembly & adjustment. Cable management through base and up through upright. 80mm castors (2x braked) and glide feet both included. Polymer board inserts to conceal cables. Compliant to standard tilt testing

PIQO LARGE SCREEN TROLLEY

Product Code : QC5585TR

Trolley for 50″ to 90″ screens & displays 1.95m max screen height (centre of screen mount)

Dimensions H-1920mm x W-1085mm x D-645mm

100kg maximum weight limit. Satin grey over satin black powder coat. Screen can be
mounted landscape or portrait. Universal up to 600mm x 600mm portrait. Universal up to
800mm x 600mm landscape. VESA 200/300/400/600×400/600/800×400. 50″ – 90″ flat
screens in Landscape (800×600) – 55″ – 90″ flat screens in Portrait (600×800). Tilts downwards up to 16 degree (screen size dependent). Screen adjustable to any height on the trolley.
Large base for increased stability. Depth & height allows passage through a standard single
door. Twin extruded aluminium uprights for simple assembly & adjustment. Cable
management through base and up through uprights. 80mm castors (2x braked) and glide feet both included. Polymer board inserts to conceal cables. Compliant to standard tilt testing.

PIQO QC5585TR-A2 TROLLEY with CABINET, CONTROL PANEL HOUSING AND MESH PANEL

Product Code : QC5585TR-A2

Trolley for 50″ to 90″ display with built in cabinet and CPH and Mesh panel

Dimensions H-2040mm x W-1414mm x D-640mm
Cabinet 400mm deep with 3 shelves

Utilising the Piqo 5585TR Trolley with cabinet at base, perforated steel mesh panel which
covers the rear top of the screen and CPH with PC attached. Cabinet to be 400mm deep with 3x adjustable shelves, lockable modesty panel and cable access behind shelves. CPH to include cut-outs with a usable width of 325mm.

Mesh panel adjustable
Av equipment not supplied

PIQO LARGE DUAL SCREEN KIT

Product Code : QC5585TRDS1

Kit for QC5585TR & FC

Dual 42″ to 55″ displays 1.7m max screen height (centre of screen mount) on Trolley
Dual 42″ to 70″ displays 1.7m max screen height (centre of screen mount) on Stand
Can be mounted in landscape or portrait. Universal fixing points up to 800mm x 400mm
landscape. Universal fixing points up to 400mm x 800mm portrait. 1750mm maximum screen height (centre of screen fixing points). Screens can independently tilt 12 deg downwards and 5 deg upwards. Screens can glide left to right during install. Cut out indicators for centre of screen height.
Cut out indicators for centering screens horizontally. Integral cable management within
horizontal extrusions. Easy to cut trim covers allow simple and infinite cable entry and exit
points. 30kg max individual screen weight. Finished in durable satin silver and black powder coat.

*Stand not included* Requires either QC5585TR or QC5585FC

PIQO SMALL DUAL SCREEN KIT

Product Code : QC5585TRDS2

Kit for QC5585TR & FC
Dual 26″ to 47″ displays 1.7m max screen height (centre of screen mount)

Can be mounted in landscape or portrait. Universal fixing points up to 800mm x 400mm
landscape. Universal fixing points up to 400mm x 800mm portrait. 1750mm maximum screen  height (centre of screen fixing points). Screens can independently tilt 12 deg downwards and 5 deg upwards. Screens can glide left to right during install. Cut out indicators for centre of screen height.
Cut out indicators for centering screens horizontally. Integral cable management within
horizontal extrusions. Easy to cut trim covers allow simple and infinite cable entry and exit
points. 30kg max individual screen weight. Finished in durable satin silver and black powder coat.

*Stand not included* Requires either QC5585TR or QC5585FC

PIQO SCREEN LIFT FOR UP TO 50KG

Product Code : QCTVL50

For screens up to 50kg in weight – The main benefit for adding height adjustability to a 5585 trolley or floor to wall stand is to allow users of different heights to engage with an
interactive touch screen. The display can be raised or lowered at the touch of a button. These images show the screen cassette fitted into a Quadra QC5585TR trolley. Incorporates cable management within the box. Will fit onto our QC5585TR, QC5585FC bespoke woodwork or wall mount. Can be adjusted to any height on the column. Screen bracket for 55-90″.
Self contained height adjustable cassette with electric lift. Space for a 4 way mains supply
inside the cassette. Single switch height adjustable control. Internal clamp to retain cables.
Finished in durable satin silver and black powder coat.

Base not included – Add either the QC5585TR trolley or QC5585FC fixed mount

PIQO SCREEN LIFT FOR UP TO 125KG

Product Code : QCTVL125

For screens up to 125kg in weight – The main benefit for adding height adjustability to a 5585 trolley or floor to wall stand is to allow users of different heights to engage with an
interactive touch screen. The display can be raised or lowered at the touch of a button. These images show the screen cassette fitted into a Quadra QC5585TR trolley. Incorporates cable management within the box. Will fit onto our QC5585TR, QC5585FC bespoke woodwork or wall mount. Can be adjusted to any height on the column. Screen bracket for 55-90″.
Self contained height adjustable cassette with electric lift. Space for a 4 way mains supply
inside the cassette. Single switch height adjustable control. Internal clamp to retain cables.
Finished in durable satin silver and black powder coat.

Base not included – Add either the QC5585TR trolley or QC5585FC fixed mount
